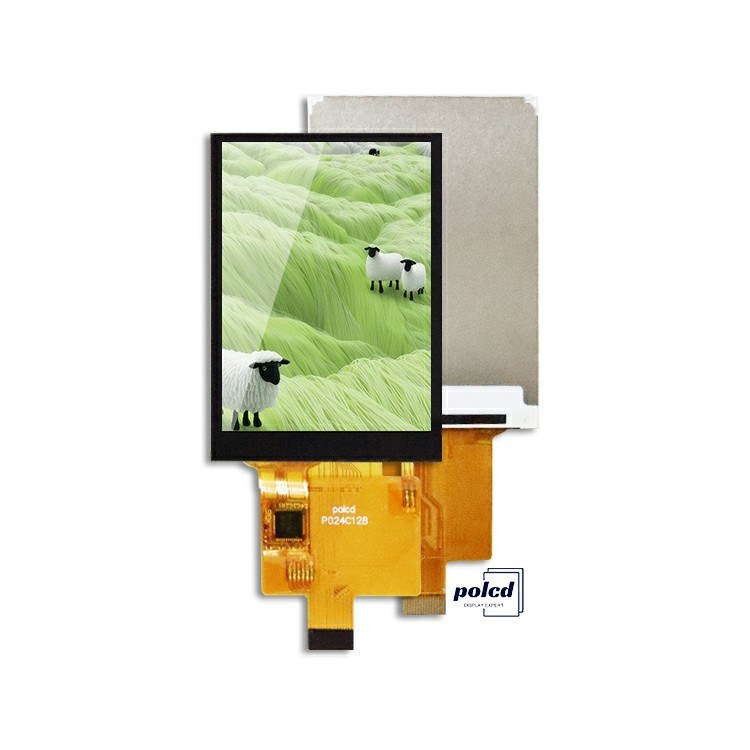

Name: Polcd Custom 2.4 Inch Lcd Capacitive Touch Screen Display Panel 240*320 SPI Interface Tft Screen Module
Brand: Shenzhen P&O Technology Co., Ltd
SKU: P024C128-CTP
Availability: InStock

Haus > produits > tft lcd-Modul >

Polcd Custom 2.4 Inch Lcd Capacitive Touch Screen Display Panel 240*320 SPI Interface Tft Screen Module

2.4 inch TFT LCD touch screen

SPI interface LCD display module

240x320 capacitive touch screen panel

Herkunftsort:

Shenzhen, China

Markenname:

Polcd

Zertifizierung:

RoHS, ISO9001

Modellnummer:

P024C128-CTP

Treten Sie mit uns in Verbindung

Fordern Sie ein Zitat

Produkt-Details

Auflösung:

240x320

Schnittstelle:

4W SPI

Treiber IC:

ST7789V

Helligkeit (CD/m²):

Nisse 260

Betrachtungswinkel:

12.00 Uhr

Anzeigebereich:

36.72 ((H) x48.96 ((V) mm

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge

1 Stück

Preis

Please contact us for latest price

Verpackung Informationen

FCL-Größe: 40*30*20cm/Probe Verpacken: 20*18*13cm

Lieferzeit

1-7 Arbeitstage

Zahlungsbedingungen

T/T, L/C, Kreditkarte, Paypal, D/A, D/P, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit

40.000 PCs pro Tag

Verwandte Produkte

Video

Polcd 2,4 Zoll 240x320 ST7789V MCU-Schnittstelle Voller Betrachtungswinkel IPS 2,4" TFT LCD-Modul

Erhalten Sie besten Preis

Video

Polcd 2,4 Zoll Touchscreen Modul ST7789V IC 240x320 Auflösung 2,4" TFT LCD Display

Erhalten Sie besten Preis

Video

Polcd Custom 2,4 Zoll LCD kapazitives Touchscreen-Display Panel 240*320 MCU-Schnittstelle TFT-Bildschirmmodul

Erhalten Sie besten Preis

Video

Polcd Custom 2.4 Inch Lcd Capacitive Touch Screen Display Panel 240*320 SPI Interface Tft Screen Module

Erhalten Sie besten Preis

Treten Sie mit uns in Verbindung

00-86-13714394335

anna@polcd.com

86-755-21011746

Kontakt jetzt

Produkt-Beschreibung

Parameter:

Model	P024C128-CTP
Screen Size	2.4 inch
Number of Pixel	240RGB(H)x320(V)
Display area	36.72(H)x48.96(V)mm
Pixel pitch	51(H)x153(V)um
Pins	16 pins

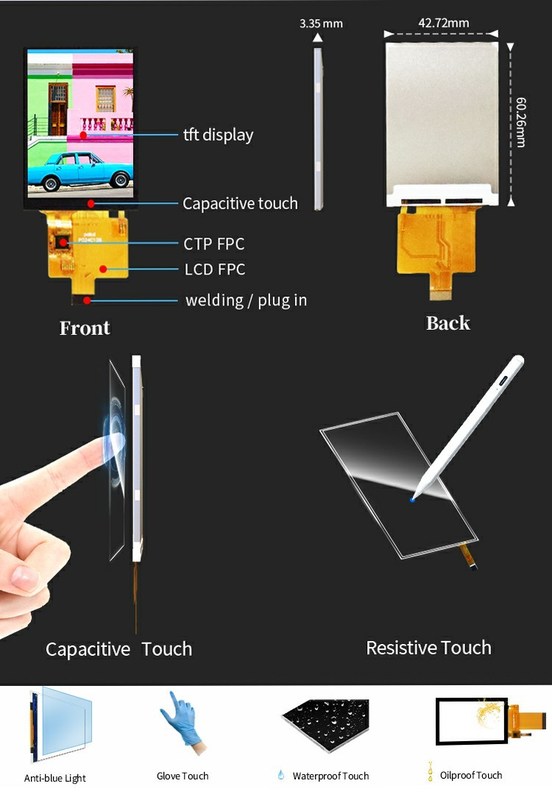

Outline Dimension	42.72x60.26x3.35mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally White
Viewing Direction(eye)	12 0'CLOCK
Display Color	262K
Luminance(cd/m2)	260 nit
Contrast Ratio	250:1
Interface	4W SPI
Back-light	LED Side-light type
Drive IC	ST7789V
CTP IC	FT6336U
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Advantages

1.High-quality display: offer high-quality display performance with a resolution of up to 240x320 pixels, providing clear and sharp images and videos.

2.Wide viewing angle: TFT LCD technology typically has a wide viewing angle, allowing for clear viewing from different angles without distortion or color shift.

3.Color display: can display up to 262,144 colors, providing accurate color representation and making it ideal for displaying images and videos.

4.Touch screen support: support capacitive touch screen input, allowing users to select, slide, and zoom with their fingers.

5.Low power consumption: it has low power consumption, which is important for devices that run on battery power.

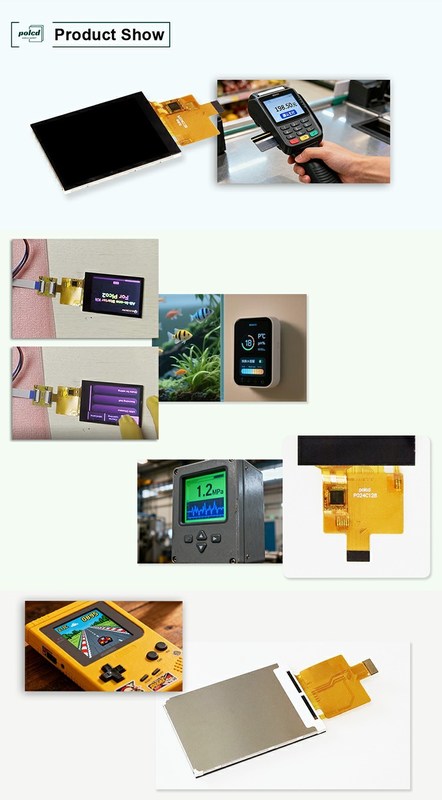

6.Durability: TFT LCD modules are durable and can withstand shock and vibration, making them suitable for use in various applications, including handheld devices, automotive displays, and medical equipment.

7.Customization: can be customized to meet specific application requirements, including different sizes, resolutions, and features.

Polcd Custom 2.4 Inch Lcd Capacitive Touch Screen Display Panel 240*320 SPI Interface Tft Screen Module 0
