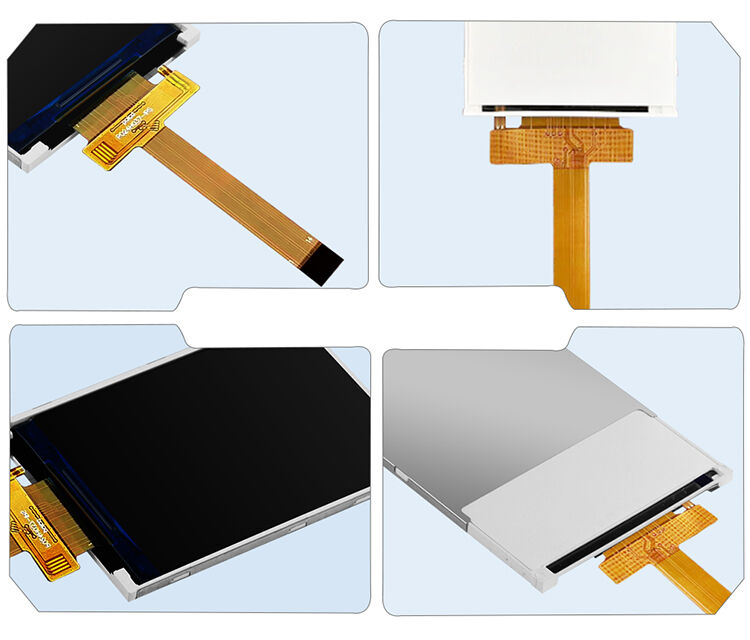

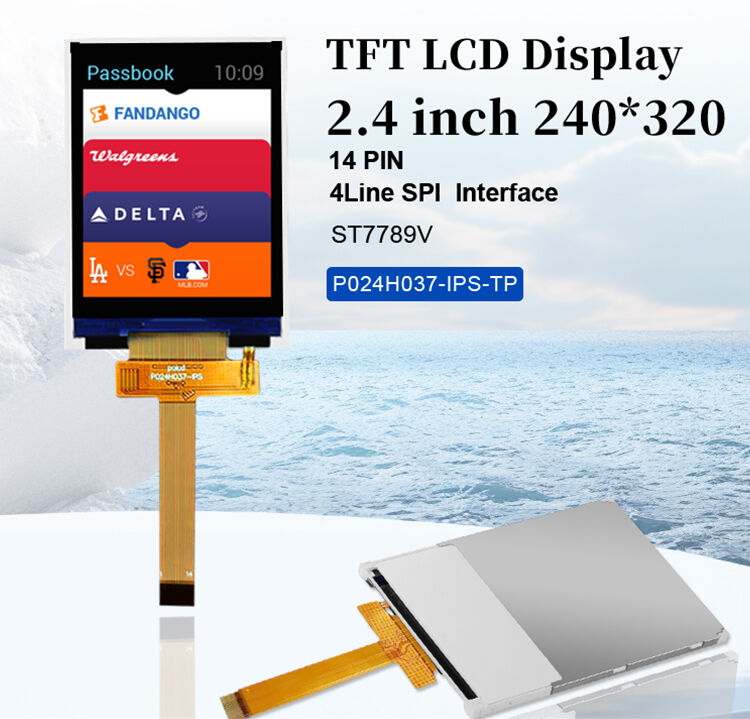

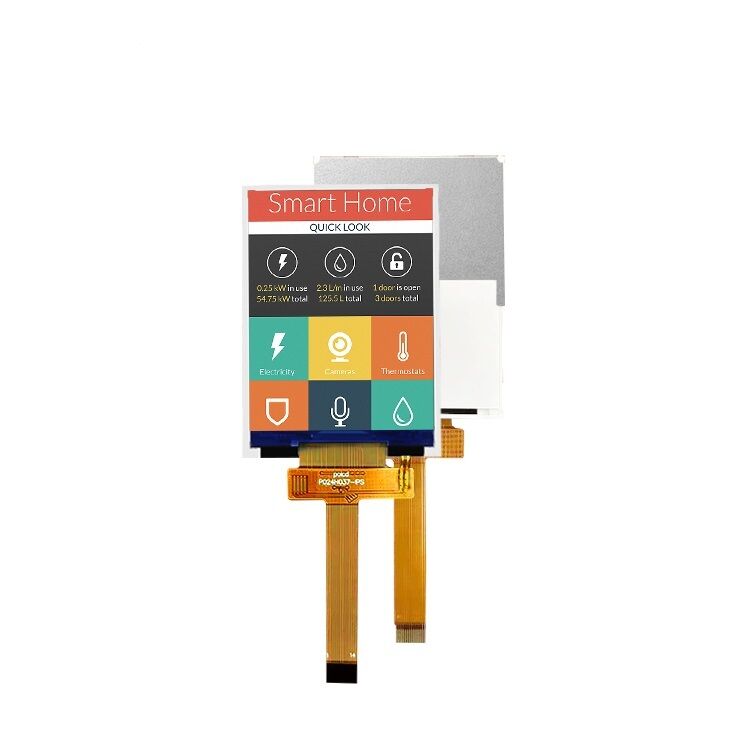

Polcd 2.4" TFT SPI 240*320 RGB Color 14 Pin ST7789V Small IPS Full Viewing Angle 2.4 inch TFT LCD Display

Polcd 2.4" TFT SPI 240*320 RGB Color 14 Pin ST7789V Small IPS Full Viewing Angle 2.4 inch TFT LCD Display

Herkunftsort:

Shenzhen, China

Markenname:

Polcd

Zertifizierung:

RoHS, ISO9001

Modellnummer:

P024H037-IPS

Treten Sie mit uns in Verbindung

Fordern Sie ein Zitat
Produkt-Details
Auflösung:
2,4 Zoll 240x320
Schnittstelle:
4 Draht spi
Treiber-IC:
ST7789V
Helligkeit (CD/m²):
Nisse 300
Betrachtungswinkel:
IPS-Blickwinkel
Anzeigebereich:
36,72 (h) x48.96 (v) mm
Stift:
14 Pin
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge
1 Stück
Preis
Please contact us for latest price
Verpackung Informationen
FCL-Größe: 40*30*20cm/Probe Verpacken: 20*18*13cm
Lieferzeit
1-7 Werktage
Zahlungsbedingungen
T/T, L/C, Kreditkarte, Paypal, D/A, D/P, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit
40.000 PCs pro Tag
Produkt-Beschreibung

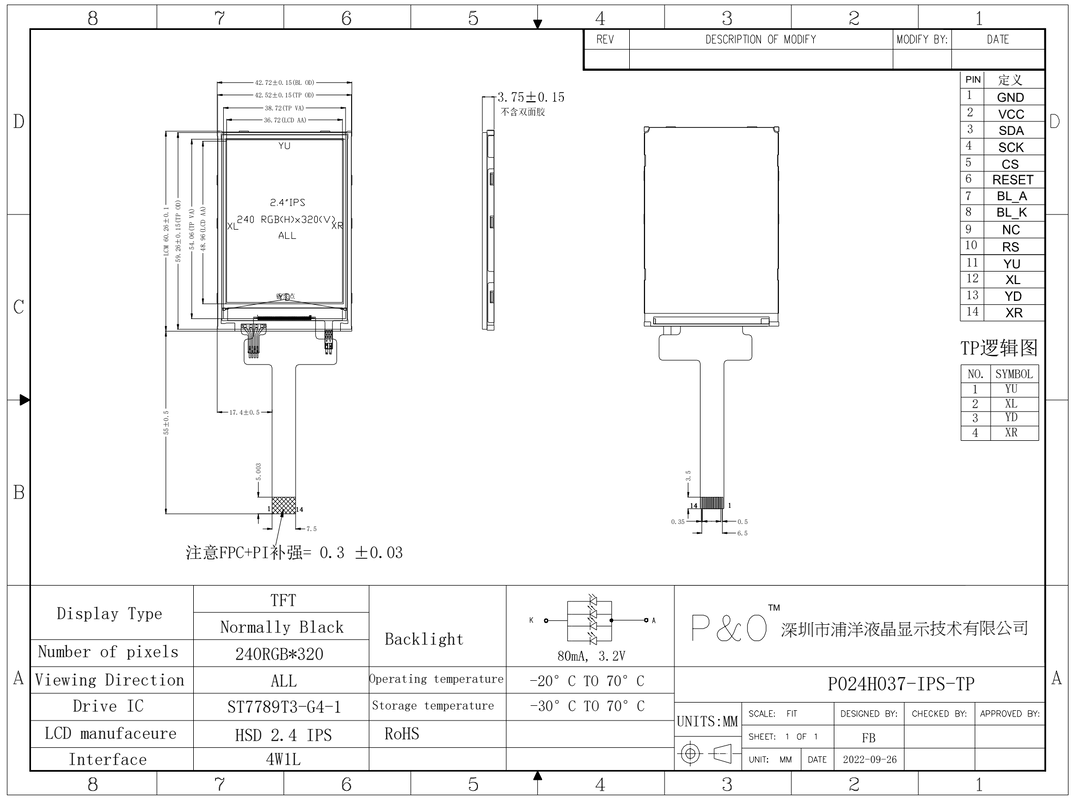

Parameter:

Model P024H037-IPS
Screen Size 2.4 inch
Number of Pixel 240RGB(H)x320(V)
Display area 36.72(H)x48.96(V)mm
Pixel pitch 0.153(H)x0.153(V)mm
Pins 14 Pins
Outline Dimension 42.72x60.26x2.25mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 800:1
Interface 4W SPI
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70℃
Storage Temperature -30~80℃


2.4 inch TFT display is a thin-film transistor liquid crystal display that measures 2.4 inches diagonally. It is a popular display size for various applications, including handheld devices, digital cameras, portable gaming consoles, and other embedded systems. The display has a high resolution and contrast ratio, a wide viewing angle, and a built-in resistive touchscreen. It also supports various communication protocols, such as SPI, I2C, and UART, making it compatible with a wide range of devices. Its low power consumption and built-in power management system make it ideal for battery-powered devices. Additionally, its compact and lightweight design makes it easy to integrate into various devices.


Polcd 2.4" TFT SPI 240*320 RGB Color 14 Pin ST7789V Small IPS Full Viewing Angle 2.4 inch TFT LCD Display 0
